TAMRON Lens UtilityTM Online Help

MF Ring Rotation

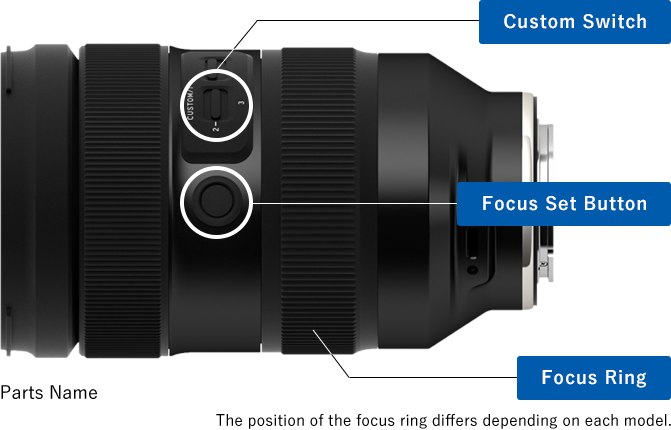

You can choose the direction that the Focus Ring rotates. It can be set to the same direction of rotation as your camera manufacturer's lenses or the reverse.


* For Nikon Z mount lenses

If you choose to set the focus rotation direction within this application, the setting cannot be changed from the camera body. If you wish to control the rotaion direction from the camera body, select [Prioritize camera body setting] in this application.


* Click for TAMRON Lens Utility Compatible Lens List >>

How to set up

1

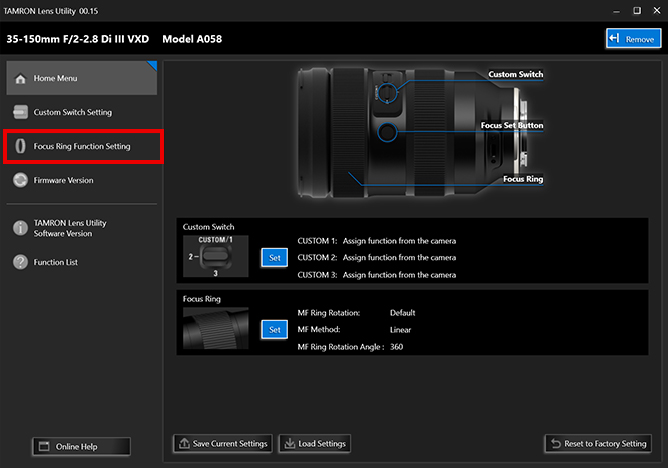

Click [Focus Ring Function Setting] at the top-left of the home screen.



* Download the TAMRON Lens Utility >>


* Check how to Connect/Disconnect Lens and Computer >>

2

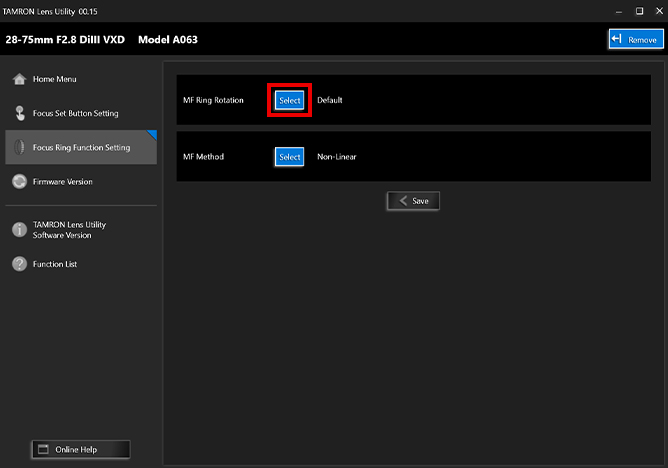

On the Focus Ring Function Setting screen, click [Select] under [MF Ring Rotation].

3

For SONY E mount lenses

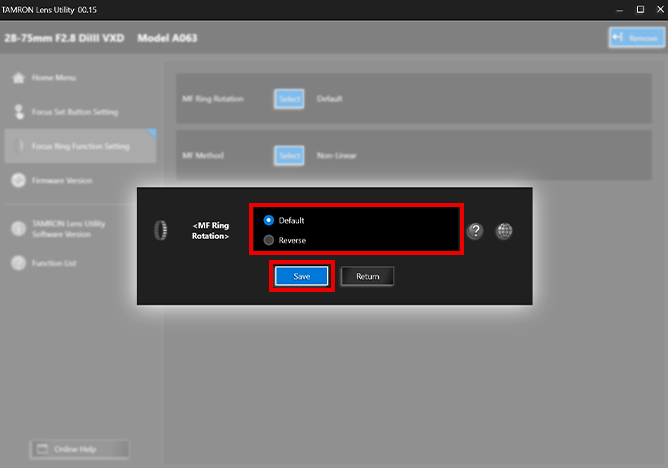

MF Ring Rotation screen is displayed. Select [Default] or [Reverse] and then click [Save] to complete the setting process.


[Default]
The rotation direction is set to the same direction as your camera manufacturer's lenses.


[Reverse]
The rotation direction is set to the reverse of the direction of your camera manufacturer's lenses.

3

For Nikon Z mount lenses

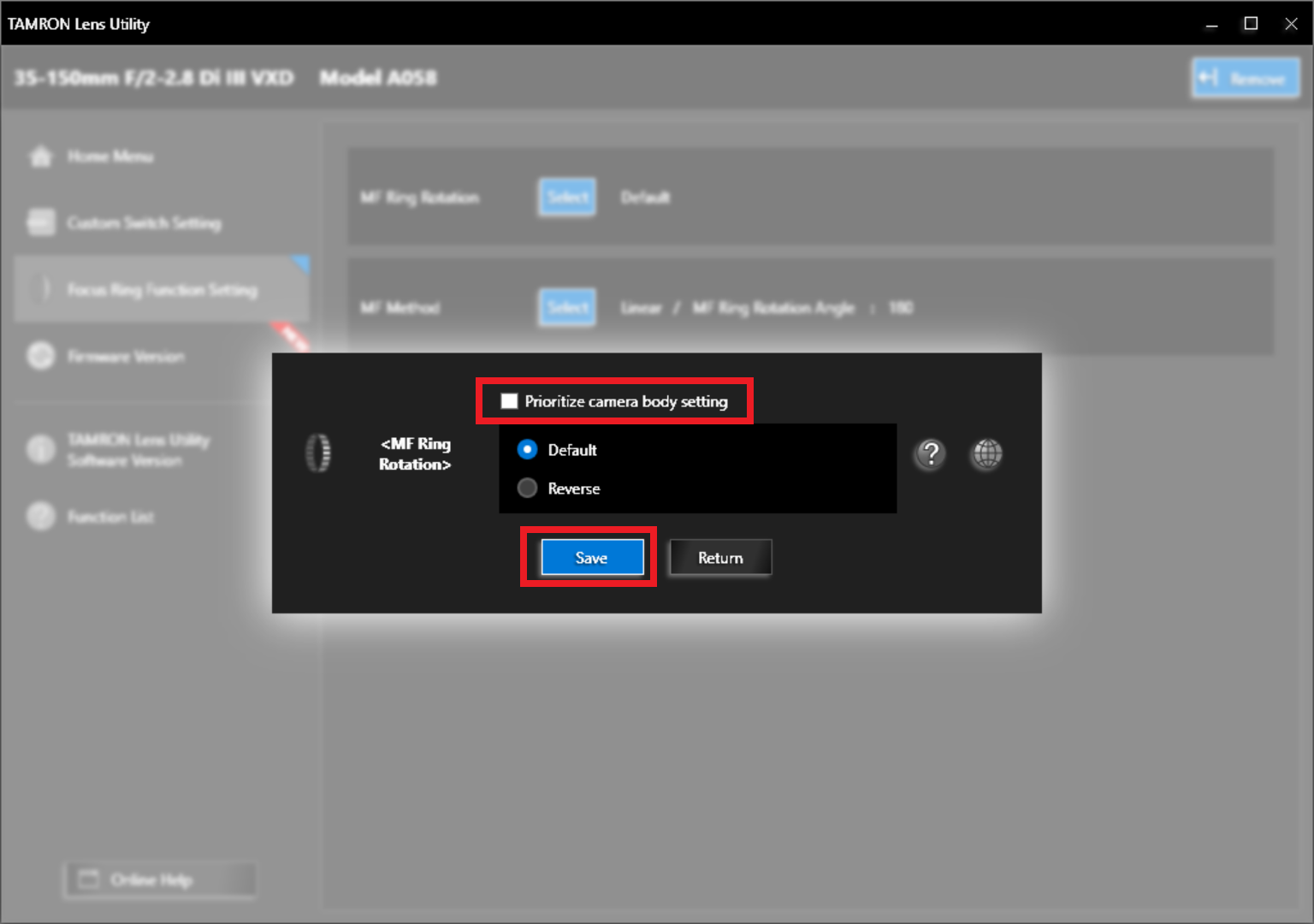

[Prioritize camera body setting]
If you wish to control the focus rotation direction from the camera body choose [Prioritize camera body setting].
