TAMRON Lens UtilityTM Online Help
Before Starting

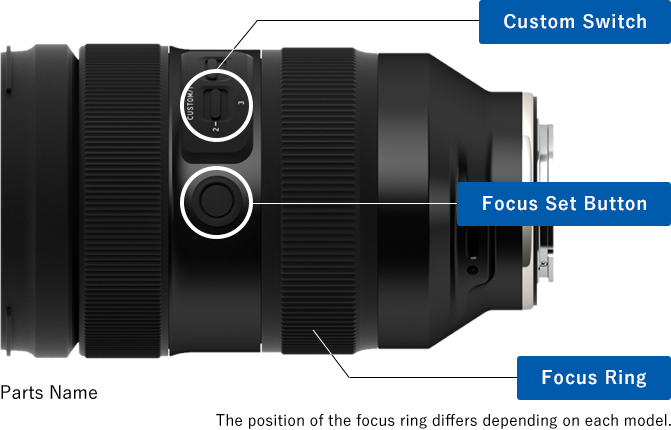

TAMRON Lens Utility compatible lenses differ in what they can do depending on whether they have Custom Switches or Focus Set Buttons.
Check the table below for a list of compatible lenses.
* Click for TAMRON Lens Utility Compatible Lens List >>
| Home Menu | Custom Switch |
Focus Set Button |
Focus Ring |
What you can do |
|
- Custom Switch 1, 2 and 3 can be customized individually. - Focus Ring can be customized. |
|||
|
− |
- One function can be assigned to Focus Set Button. - Focus Ring can be customized. |
||
| − | − | - Focus Ring can be customized. |
Function List

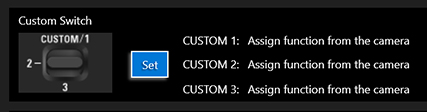

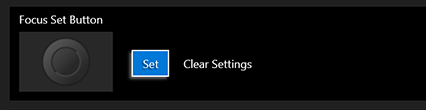

Customizing the Custom Switch or Focus Set Button
Assign Function from the Camera
Functions from the camera can be assigned.
Check details >>
Select AF/MF
Toggle between "AF" and "MF".
Check details >>
Focus Preset
Shift focus to a preset position.
Check details >>
A-B Focus
Shift the focus back and forth between two preset positions.
Check details >>
Focus Stopper
Limit the MF travel range between any two focal points that have been recorded beforehand.
Check details >>
Astro FC-L
Fix the focus position at infinity for astrophotography.
Check details >>
Focus Limiter
You can select the auto focus search range between Full and Limit.
Check details >>
Ring Function (Focus/Aperture)
Toggle the function of the Focus Ring between "Focus adjustment" and "Aperture adjustment".
Check details >>
Clear Settings
Disable the Focus Set Button.
Check details >>
Customizing the Focus Ring

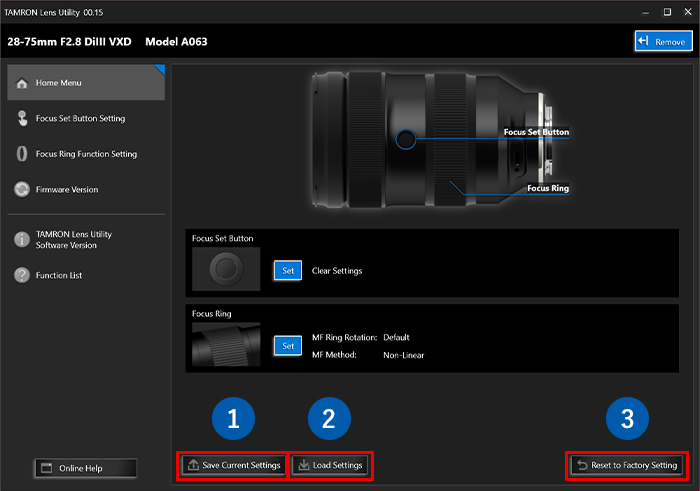

Save or Load Customized Data to/from File
You can save customized data as files on your computer and recall them later.
To save customized data, click [Save Current Settings]. When the dialog box "Save as" appears, choose the folder for saving data, enter a file name, and save.
To load a saved file containing customized data, click [Load Settings]. When the dialog box "Open a file" appears, choose the file you want to load and open it.
Reset to Factory Setting
When you wish to choose the default settings, click [Reset to Factory Setting].
