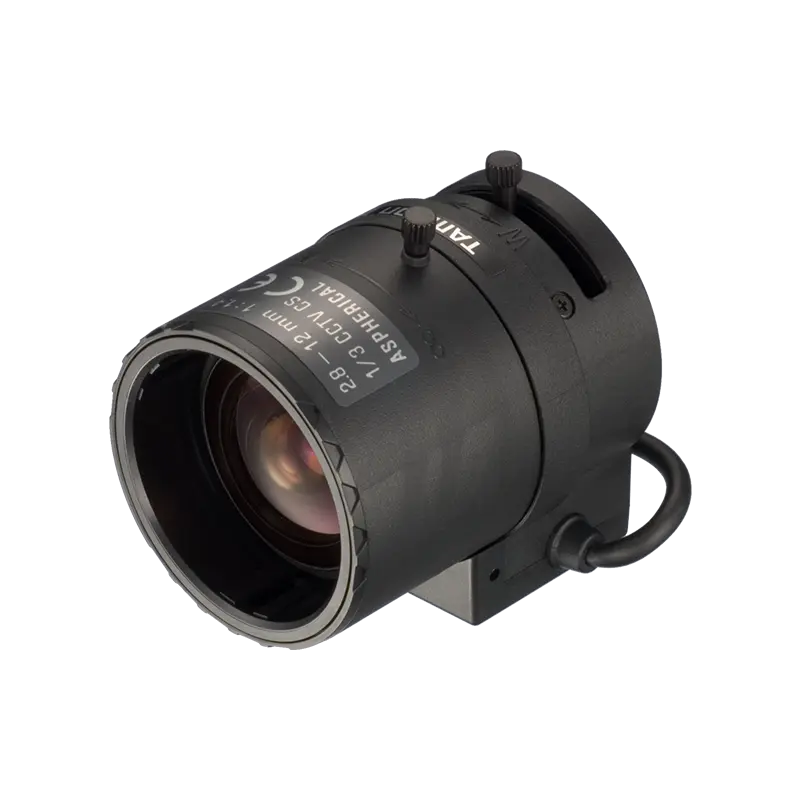

Network Surveillance Camera Lenses
-
13VG2812ASII
-
-
2022.09
2050.01
Imager Size Focal Length Aperture Range Iris -
| Model No. | 13VG2812AS II | ||
|---|---|---|---|
| Imager Size | 1/3" | ||
| Mount Type | CS | ||
| Focal Length | 2.8 - 12mm | ||
| Aperture Range | F/1.4 - 360 | ||
| Field of View Angle (Horizontal x Vertical) |
1/3" | Wide | 97.4゜x 72.5゜ |
| Tele | 24.1゜x 18.1゜ | ||
| 1/4" | Wide | 72.5゜x 54.1゜ | |
| Tele | 18.1゜x 13.6゜ | ||
| Focusing Range | 0.3m - ∞ | ||
| Operation | Focus | Manual with Lock | |
| Zoom | Manual with Lock | ||
| Iris | DC Auto Iris | ||
| Filter Size | - | ||
| Back Focal Distance | Wide : 8.61( in air ) Tele : 19.90mm( in air ) |
||
| Wave Length | Visible Light | ||
| Operating Voltage | OPEN : 3.3V CLOSE : 0.7V |
||
| Weight | 71g ± 4g | ||
| Operating Temperature | -20°C - +60°C | ||

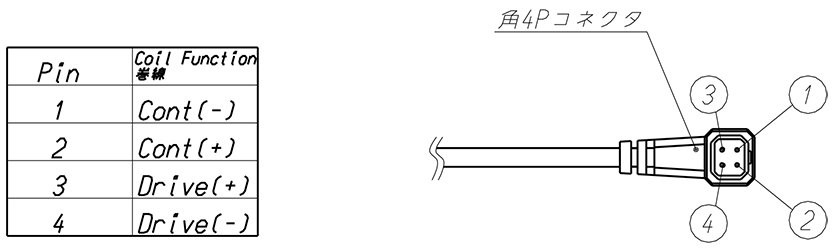

| Wiring Disgram |  |
||
* Specificotions subjected to change without ony notice.
