FA and Machine Vision Lenses
-
MA23F16V
-
NEW
-
-
2022.12
2050.01
Imager Size Focal Length Aperture Range Iris -

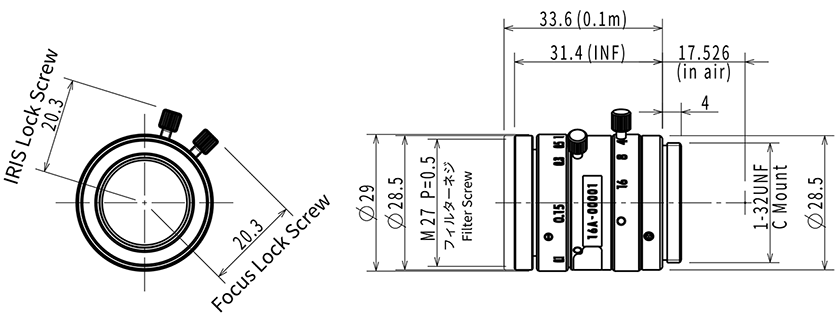

Focus angle : 146deg
IRIS angle : 74deg
| Model No. | MA23F16V | ||
|---|---|---|---|
| Imager Size | 2/3" | ||
| Mount Type | C | ||
| Focal Length | 16mm | ||
| Aperture Range | F/2.4 - F/16 | ||
| Field of View Angle (Horizontal x Vertical) |
2/3" (1:1) | 27.0° x 27.0° | |
| 2/3" (4:3) | 30.2° x 22.8° | ||
| 2/3" (16:9) | 32.8° x 18.7° | ||
| 1/1.8" (4:3) | 24.5° x 18.1° | ||
| 1/2" (4:3) | 22.2° x 16.7° | ||
| 1/3" (4:3) | 16.7° x 12.6° | ||
| Focus Range | 0.1m - ∞ ( Recommended Shooting Distance 0.3m ) |
||
| Operation | Focus | Manual w/lock | |
| Iris | Manual w/lock | ||
| Filter Size | M27 P=0.5mm | ||
| Wave Length | Visible Light | ||
| TV Distortion | -0.05% (*) | ||
| Weight | 59g | ||
| Operating Temperature | -20°C - +60°C | ||
* Design Value
* Specificotions subjected to change without ony notice.
