What's Di II ?

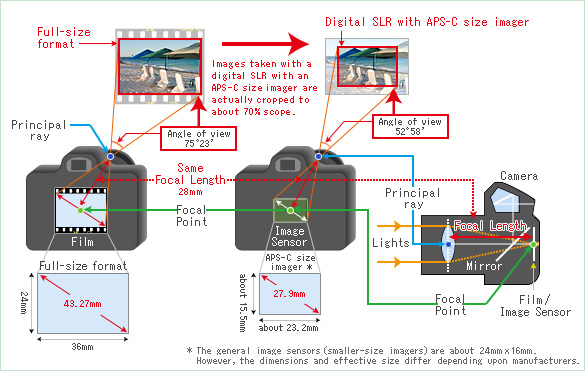

Designed to capture the optimum scope when used with a APS-C digital camera
Since the size of full-size format is different from the APS-C size imager, scopes captured are different even when focal lengths are the same (i.e., angles of view differ).
The SP AF10-24mm Di II is designed to have shorter focal lengths to achieve optimum angles of view in its wide-angle side.
Designed to capture the optimum scope when used with a APS-C digital camera
Designed to fit APS-C size imagers in order to reduce its diameter
Image circle for Di-II lenses / Vignetting when used with a full-size format camera


Attempts to design shorter focal lengths inevitably result in a larger lens diameter. TAMRON has solved this problem by designing the size of the lens' image circle to match that of APS-C size imagers. In the compact design, it is almost comparable to a lens offering the same angles of view in full-size format.
* When pictures are taken with a Di-II lens on a full-size format, image corners become dark (ie., vignetting becomes noticeable).
